Description
The Fenix WH23R Work Headlamp is the perfect tool for the working professional or DIY tasks. Seven lighting modes are easily operated by the glove-friendly rotary side switch. Two independent light sources include a spotlight and floodlight. Activate them both for a 600 lumen Turbo mode.
The most unique feature of the WH23R is its smart motion sensor. Quickly turn on and off the light simply by waiving your hand in front of the headlamp. USB Type-C rechargeable, the built-in li-polymer battery can be fully charged in 1.5 hours. IP66 rated dustproof and heavy splash proof, oil resistant, and impact resistant to 2 meters, this headlamp is ready for the toughest of work conditions.
- Two Luminus LEDs with a lifespan of 50,000 hours
- Built-in 3.7V/2000mAh li-polymer battery
- Spotlight, floodlight and combined light with both modes simultaneously turned on
- Smart sensor function – the headlamp can be turned on or off with a wave of the hand
- Glove-friendly rotary switch operates all lighting modes and levels
- USB Type-C rechargeable headlamp. up to 1.5 hours to full charge
- Made of quality PC material, impact-resistant and corrosion-resistant
Switches
On the right side of the rechargeable headlamp, there are rotary and electronic switches.
On/off
- Rotate the rotary switch clockwise to turn on the headlamp
- Rotate the rotary switch counterclockwise to the OFF logo to turn off the headlamp
Mode switching
Rotate the rotary switch to the corresponding logo to activate the desired mode of spotlight, floodlight or combined light mode.
Output Selection
- In Spotlight mode, single click the electronic switch to cycle through Spotlight Low →Spotlight Med →Spotlight High.
- In Floodlight mode, single click the electronic switch to cycle through Floodlight Low→ Floodlight Med →Floodlight High.
* When activates the combined light mode, there is Turbo mode ONLY.
Intelligent Memory Circuit
The work headlamp memorizes the last selected output on spotlight and floodlight modes. When turned on again the previously used output will be recalled.
Intelligent Sensor Function
A blue intelligent sensing function indicator is designed on the left side of the headlamp to indicate the on/off status of the sensing function; when the intelligent sensing function is not required, this function can be turned off by manual operation.
Sensing function on/off
The lamp memorizes the last selected on or off-state sensing function, when turned on again the previously used on or off-state sensing function will be recalled.
With the work headlamp switched on, press and hold the electronic switch for 1.2 seconds, the lamp will flash 8 times at Turbo mode, and the blue sensing function indicator light will turn off at the same time, indicating that the sensing function has been turned off; press and hold the electronic switch again for 1.2 seconds, the lamp will flash at Turbo mode 2 times, and the blue sensing function indicator light is on, indicating that the sensing function is turned on.
Sensing light on/off
In the power-on state, when the sensing function is on (the blue sensing function indicator is on), wave your hand within the sensing range in front of the lamp to temporarily turn off the lamp, and wave your hand again to turn on the lamp.
In the power-on state, if the sensing function is turned off (the blue sensing function indicator is off), it will not respond to any motion operation.
Charging
- Switch off the lamp, uncover the cap and plug the USB Type-C side of the charging cable into the charging port of the lamp, and the other side into an electrical outlet.

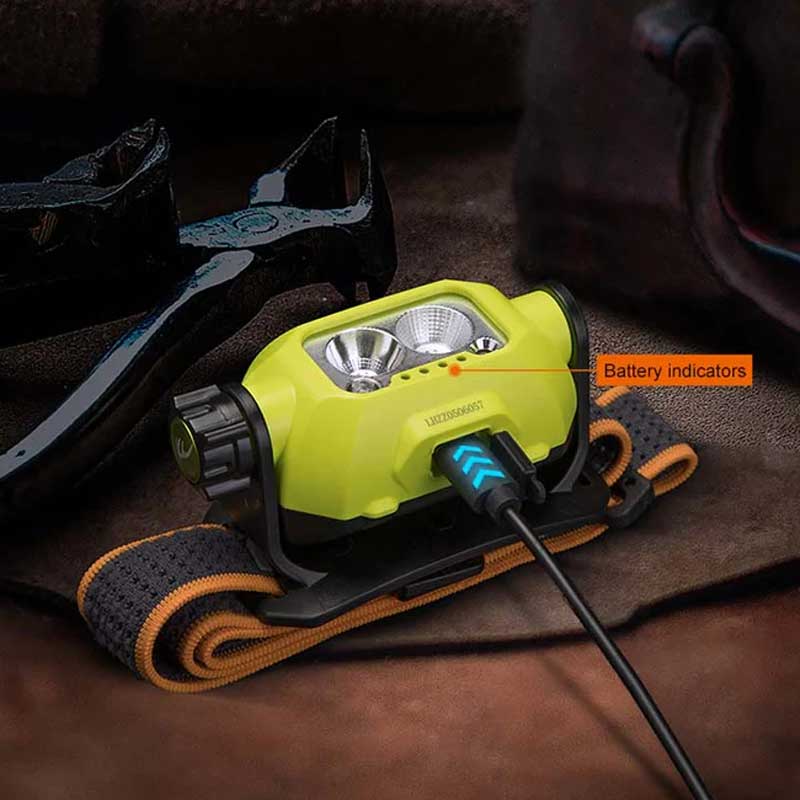

- When charging, the charging indicators will flash from left to right to display charging status. The four indicators will be constant-on after charging is complete.
- The normal charging time is approximately 1.5 hours from depletion to full charging.
- When charging is complete, replace the anti-dust cap to ensure the waterproof and dustproof ability.
Battery Level Indication
With the lamp switched off, single click the electronic switch to check the battery status, the indicators will last for 3 seconds.
- Four blue constant on: 100% – 80%
- Three blue constant on: 80% – 60%
- Two blue constant on: 60% – 40%
- One blue constant on: 40% – 20%
- One blue flashes: critical 20% – 1%
Intelligent Overheat Protection
The lamp will accumulate a lot of heat when used at relatively high modes for extended periods. When the lamp reaches a high temperature, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops, it will then allow the user for the reselection of the modes.
Low-voltage Warning
When the voltage level drops below the preset level, the work headlamp is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output mode, one of the charging indicators blinks blue constantly to remind you to timely recharge the battery.

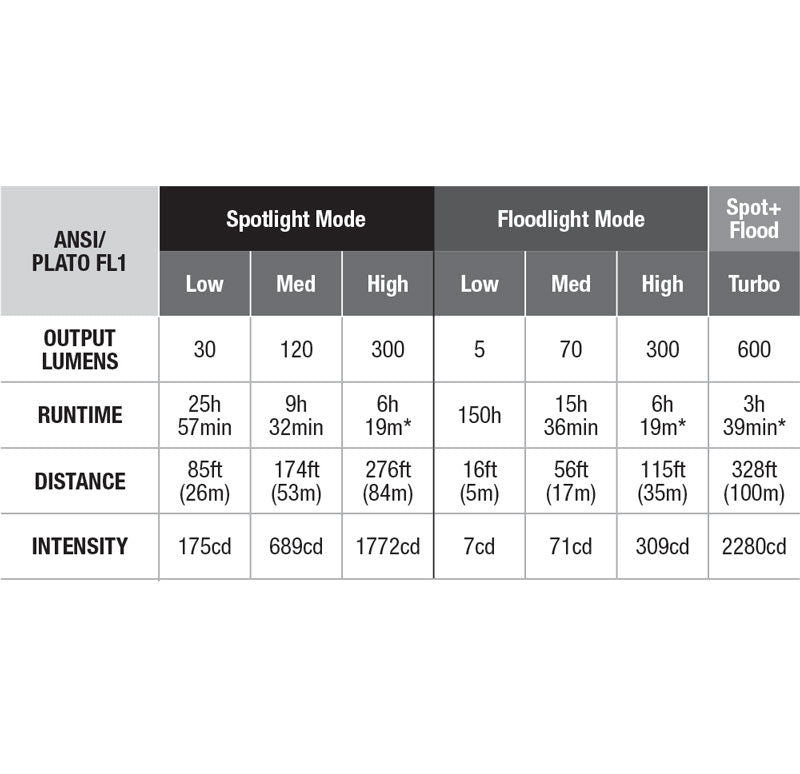

Max Lumens: 600
Max Beam Distance: 100 meters
Max Runtime: 150 hours
Lighting Modes: Seven modes including three spotlight levels, three floodlight levels, and Turbo combo level
Bulb Type: Two Luminus LEDs
Color Temperature: Around 6000K
Size: Length: 86.45mm; Width: 45mm; Height: 43.72mm
Weight: 115g including battery
Battery: Built-in 3.7V/2000mAh li-polymer battery

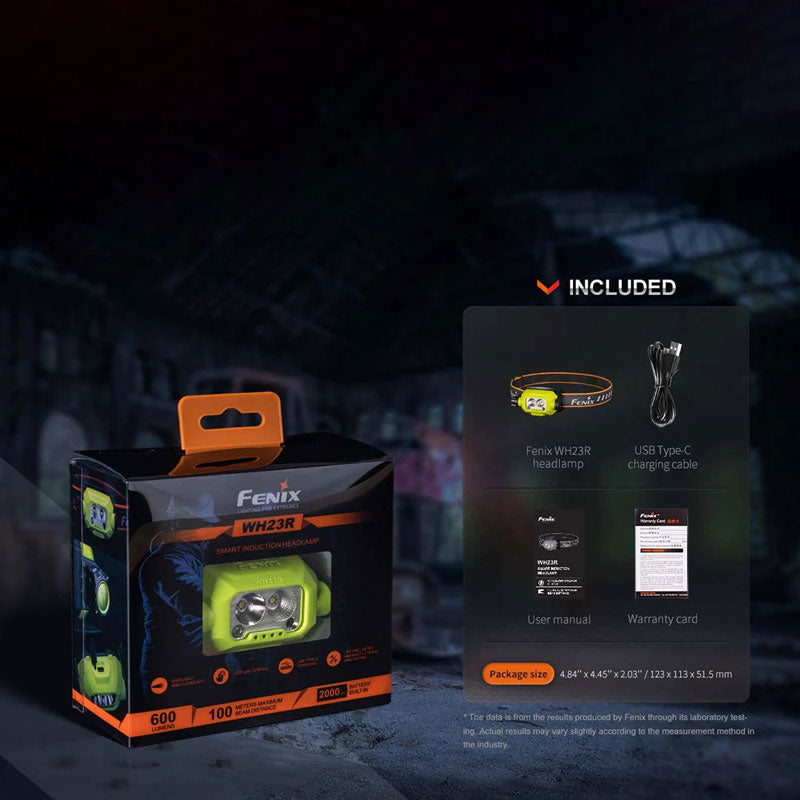

Included: USB Type-C charging cable
Impact resistance: 2 meters
Waterproof/dustproof: IP66, dustproof/heavy splash/rain resistant
